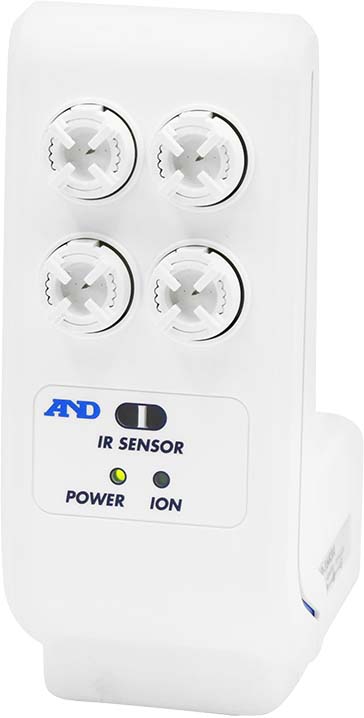

AD-1683A External Ioniser (Static Eliminator)
Optimised for use with laboratory balances
Highlights
Features
Downloads
- Generates positive and negative ions from four electrode needles that immediately*1 neutralize static charges while maintaining the ambient ion balance
- Allows touchless ON/OFF control via an embedded IR sensor which enables efficient and stress-free static elimination
- Employs the DC method, so no breeze is generated, allowing the removal of static from even extremely fine powders without disturbing the powder and reduces the possibility of contamination
- Indicates ion discharge by an LED lamp lighting up and also a buzzer*2 sounding
- Automatically turns off the ion discharge (either in 3 sec or 10 sec) when Timer mode is selected
- An external IR switch for users who want the ionizer ON/OFF switch closer to hand (optional)
- Allows safe cleaning or replacement*3 of the electrode needles as each needle has a safety cap
Highlights
- Generates positive and negative ions from four electrode needles that immediately*1 neutralize static charges while maintaining the ambient ion balance
- Allows touchless ON/OFF control via an embedded IR sensor which enables efficient and stress-free static elimination
- Employs the DC method, so no breeze is generated, allowing the removal of static from even extremely fine powders without disturbing the powder and reduces the possibility of contamination
- Indicates ion discharge by an LED lamp lighting up and also a buzzer*2 sounding
- Automatically turns off the ion discharge (either in 3 sec or 10 sec) when Timer mode is selected
- An external IR switch for users who want the ionizer ON/OFF switch closer to hand (optional)
- Allows safe cleaning or replacement*3 of the electrode needles as each needle has a safety cap
Features
Options
AD1612-14: Pole mounting bracket
Accessories
AX-BM-NEEDLESET Discharge electrode units (a set of 4 pcs)
AX-IR-SWITCH External IR switch
AD-1684A Electrostatic field meter
AX-IR-SWITCH connected to the AD-1683A
Specifications
| Ion generation method | Direct corona discharge |
| Effective range of static elimination | Within approx. 7 cm of the electrode needles |
| Operating environment | 5 to 40°C / 41 to 104°F, 85% RH or less (no condensation) |
| Discharge electrode needles | Tungsten (approx. product life of 10,000 hr) |
| External dimensions | 68 (W) × 128 (D) × 163 (H) mm |
| Net weight | Approx. 370 g |
| Standard accessory | AC adapter |
