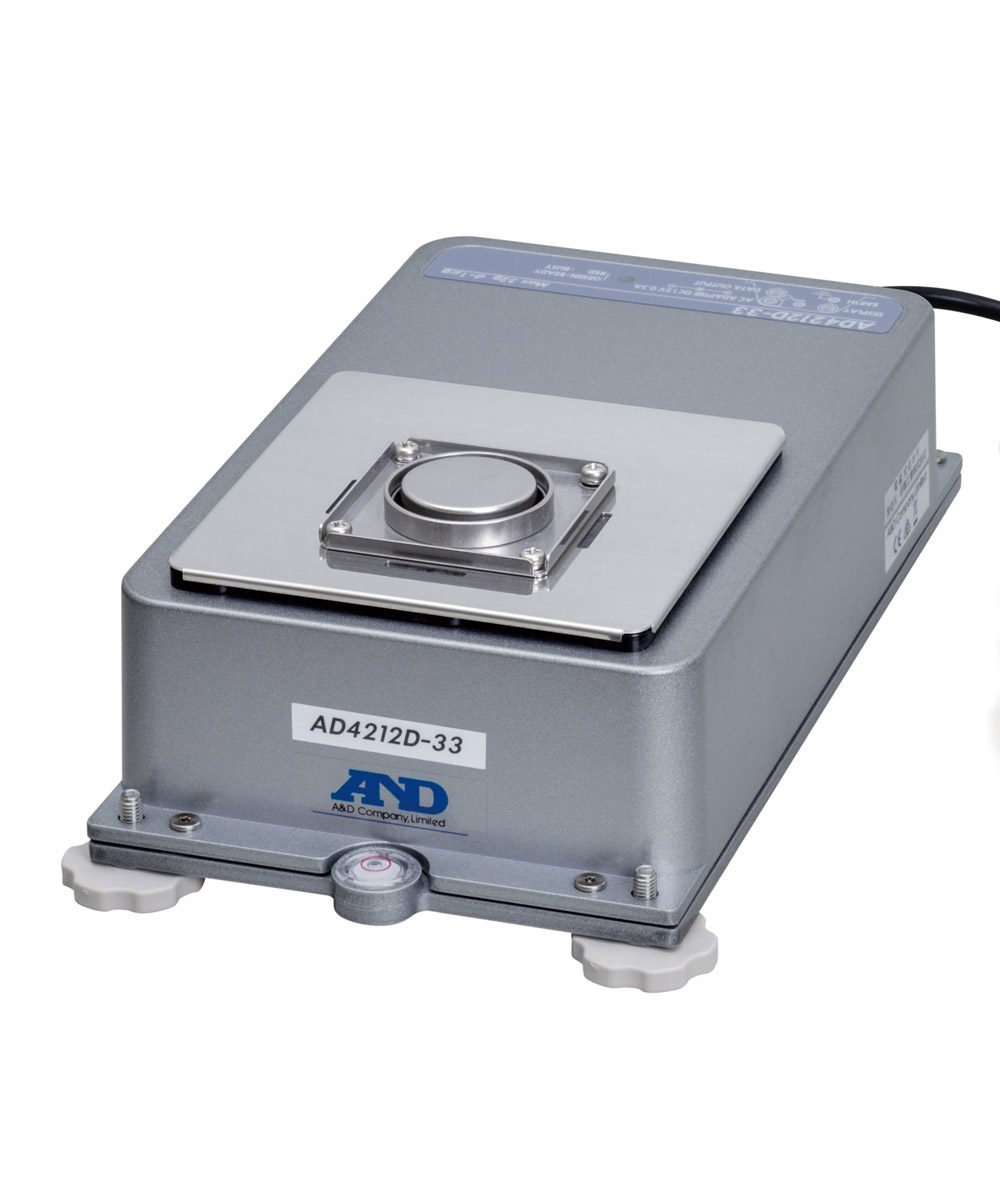

Analytical Balances AD-4212D
The AD-4212D series brings the precision of high-end laboratory analytical balances to production lines/systems, glove boxes and fume cupboards with unprecedented flexibility and utility. High Resolution, High Stability & Space saving.
Highlights
Features
Downloads
- Minimum weighing value from 1 μg
- EM-DLC* technology for direct connection to a PC or PLC
- Compact size and resistance to vacuum state ideal for use in a glove box
- Stable measurement in a fume hood (for 0.1 mg readability only)
- Internal calibration function to ensure accuracy with one key
- Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
- Adjustable response characteristics to help cope with the effects of drafts and vibrations
- Automatic zero display after data output
- Equipped with a small breeze break
- Possible to design and attach your preferred weighing pan/receptacle
- Clock and calendar function
- Underhook for weighing magnetic materials and density measurements
- GLP/GMP/GCP/ISO compliant output
- Clock and calendar function
- Built-in temperature sensor for temperature data output
- Can be secured directly to a base by removing the levelling feet and using screws
- Water-resistant cap for cleaning**
- High extensibility with A&D’s various peripheral devices
- AD-1691 weighing environment analyzer provided as standard
Highlights
- Minimum weighing value from 1 μg
- EM-DLC* technology for direct connection to a PC or PLC
- Compact size and resistance to vacuum state ideal for use in a glove box
- Stable measurement in a fume hood (for 0.1 mg readability only)
- Internal calibration function to ensure accuracy with one key
- Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
- Adjustable response characteristics to help cope with the effects of drafts and vibrations
- Automatic zero display after data output
- Equipped with a small breeze break
- Possible to design and attach your preferred weighing pan/receptacle
- Clock and calendar function
- Underhook for weighing magnetic materials and density measurements
- GLP/GMP/GCP/ISO compliant output
- Clock and calendar function
- Built-in temperature sensor for temperature data output
- Can be secured directly to a base by removing the levelling feet and using screws
- Water-resistant cap for cleaning**
- High extensibility with A&D’s various peripheral devices
- AD-1691 weighing environment analyzer provided as standard
Features
| Model | Capacity | Resolution | Pan Size |
|---|---|---|---|
| AD-4212D-33 | 32g | 0.001 | Ø34 mm |
| AD-4212D-32 | 5.1 g/32 g*1 | 0.001 mg/0.01 mg*1 | Ø34 mm |
| AD-4212D-302 | 320g | 0.01mg | Ø50 mm |
| AD-4212D-301 | 320g | 0.1mg | Ø50 mm |
*1 Smart range function: The display will switch to the standard range automatically when the value exceeds 5.1g but will return to the precision range when RE-ZERO (tare) is performed.
| Options & Accessories | Model |
|---|---|
| Static eliminator | AD-1683 |
| Electrostatic field meter | AD-1684A |
| Compact printer | AD-8121B |
| Remote controller and display unit | AD-8922A |
| Remote controller (BCD) | AD-8923-BCD |
| Remote controller (CC-link) | AD-8923-CC |
| RS-232 cable (10m, for A&D’s external display)*** | AX-KO3590-1000 |
| AX-KO4472-1000: RS-232C cable (10m, for a PC/PLC) | AC-KO4472-1000 |
*** A 2m cable is provided as standard
